Synthetic rubber mat FIT-KUN

FIT-KUN

Stronger, lighter and easier to carry than rubber mats.

Features

  • Softly fits to the ground
  • Lighter and harder than rubber mats, making it easy for people to carry
  • Wide variety of sizes compared to ordinary rubber mats

Specifications
Model No. Dimensions (mm) Weight Surface Raw materials
Width Length Thickness
FD36 910 1,820 13 (8+5) 13kg
(±5%)
Surface: 5 mm in hight
Back: Flat
Synthetic rubber
FD48 1,219 2,438 13 (8+5) 26kg
(±5%)
FW36 910 1,820 15 (13+2) 21kg
(±5%)
Non-slip surface
Surface: 2 mm in hight
Back: Flat
FW48 1,219 2,438 15 (13+2) 39kg
(±5%)

Design drawing of FIT-KUN (thin-type)

Design drawing of FIT-KUN (thin-type) 3 shaku x 6 shaku-sized
*The back side is flat.
Design drawing of FIT-KUN (thin-type) 4 shaku x 8 shaku-sized
*The back side is flat.

Design drawing of FIT-KUN (thick-type)

Design drawing of FIT-KUN (thick-type) 3 shaku x 6 shaku-sized
*The back side is flat.
Design drawing of FIT-KUN (thick-type) 4 shaku x 8 shaku-sized
*The back side is flat.

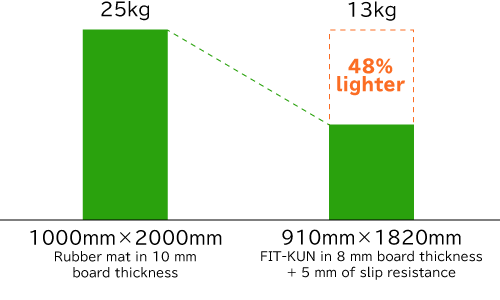

Difference between FIT-KUN and rubber mat

Difference between FIT-KUN and rubber mat

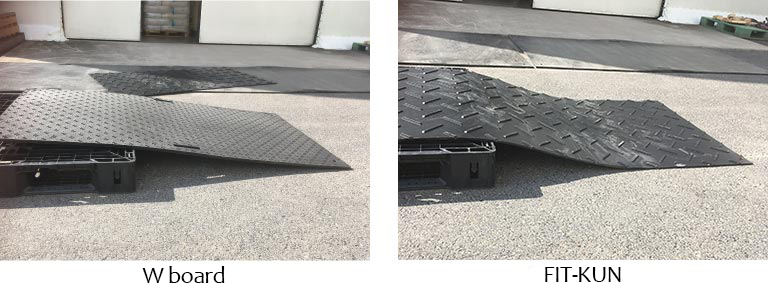

Difference between FIT-KUN and W board

Difference between FIT-KUN and W board

FIT-KUN is flexible and easy to fit to the land, and can also cover steps.
Example of use
  • FIT-KUN:Event venue
    Event venue
  • FIT-KUN:Lawn curing
    Lawn curing
  • FIT-KUN: PVC greenhouse entrance
    PVC greenhouse entrance

Precautions for use
  • Be sure to wear working gloves when constructing, removing, or moving, etc. FIT-KUN by hands.
  • As FIT-KUN is lightweight, deviations may occur due to the vehicle running motion.
  • FIT-KUN may be blown off by a gust of typhoon, etc.. If stormy weather is expected, fix or remove FIT-KUN.
  • As FIT-KUN is a synthetic rubber mat, it may warp or contract due to a sudden change in temperature depending on the season.
  • Running motion of iron crawler vehicles on FIT-KUN can cause damage and premature attrition.
  • There is a risk of breakage under conditions where sharp objects such as crushed stone and concrete debris are stuck into the floorboard.

Prohibited matter
  • To use as a floorboard for crane outriggers.
  • To use on soft ground or ground that may collapse.
  • To use fire such as bonfire or welding sparks on the product.
